Solid Flotation Boom

SFB Series

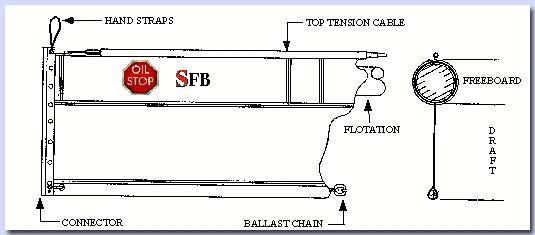

Oil Stop’s line of oil spill and floating debris containment boom includes the SFB Series. SFB (Solid Float Boom) is a conventional foam-filled curtain boom, which is widely used for combating oil spills. The flotation for the curtain booms are cylindrical foam logs, with diameters from 2 to 18 inch.

• All models are available with or without top tension members.
• Standard ballast chains are galvanized steel. Sizes can be altered to suit a given application.
• Standard top tension is synthetic “paralay” cable (“Duravet”). It is non-metallic to eliminate corrosion.
• Metal top cables, if preferred, are sheathed in vinyl tubing and carefully installed on the boom to assure proper performance as a tension member.

Seawater-Resistant Materials:

Metal components are either marine grade aluminum, galvanized steel, or stainless steel.

End Connectors:

• Standard or heavy-duty universal slide, or quick connect (Z) couplers are available.
• Self-locking pins are standard for tool-free connection.
• All connectors meet ASTM F-962 criteria.

SOLID FLOAT OIL CONTAINMENT BOOM SPECIFICATIONS

MODEL NUMBER	OVERALL HEIGHT Inches (mm)
SFB-6	6 (150)
SFB-10	10 (252)
SFB-18	18 (457)
SFB-18TT	19 (482)
SFB-24TT	25 (635)
SFB-36	36 (915)
SFB-42TT	42 (1090)

Fence Boom, which utilizes flat rectangular shaped floats, is also available in the above dimensions

• Boom materials available include PVC, Urethane, Elvaloy (XR5), Nitrile, and blends of PVC/Urethane
